PLANTER and DRILL Parts

Seeder Plug, white plastic plate 2.50"OD x .27" thick.

CAP/TRUNNION KIT. PASTURE PLEASER / STUBBLE DRILL / LEVEE SEEDERSERIES IV 3 PT. / END WHEELSERIES V DRILL - 3 PT. New OEM Tye part.

530066, 530-066 AGCO TYE BRACKET Arm Link. Sold Individually.

Frame 18.75" x 5.87" 1.25" 530-374 supersedes to 530-561. This is part number 530-374 TYE.

Arm Yoke 16.00" x 9.37" x 5.00". TYE Sold Individually.

IDLER, PLASTIC (FOR NO. 41 CHAIN) SPOOL .63"ID x 1.75"OD x 1.00" wide at chain surface. Overall 1.37" wide x 2.24"OD.

STRAP DEPTH Adjustment arm

545-070 AGCO Tye HOUSING Asy 9 LUG

WASHER/ DRILL SEEDER. Plastic disc washer with a square hole .635" square x 2.00"OD x .125" thick

BEARING and Shaft, New OEM Tye Drill part number 522-019, 552019. 4.87" long 1.18"OD.

Bearing Ball with lock collar and setscrews. New OEM TYE part number 552-202. These are older bearings, so they won't be lower quality like some of the imports today.

Dust CAP, Dome Grease CAP 1.84"ID x 1.99"OD x .30" tall area that slides into hub. 2.20"OD at rib x 1.00" overall height, inside clearance approximately .77". New OEM Tye part number 561-022, 561022.

SHIELD/DUST DISC BEARING, Metal Cover washer. .625"ID x 2.27"OD x .38"T. Sold Individually.

FERRULE/ Pivot Bushing .364"ID X .540"OD x .44"W Sold Individually.

FERRULE/ Spacer .50"ID X .625"OD x 1.50"W Sold Individually.

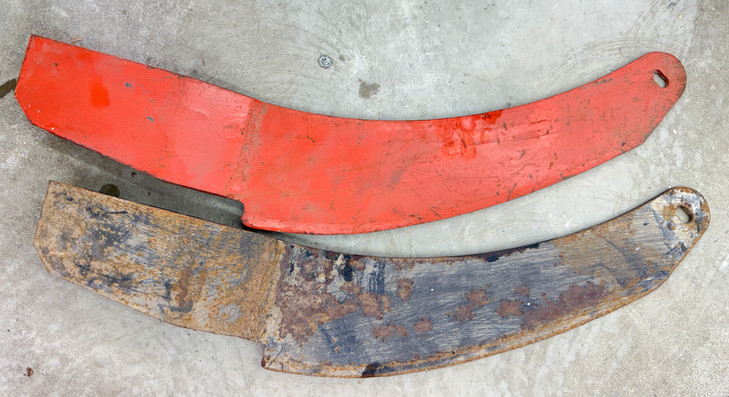

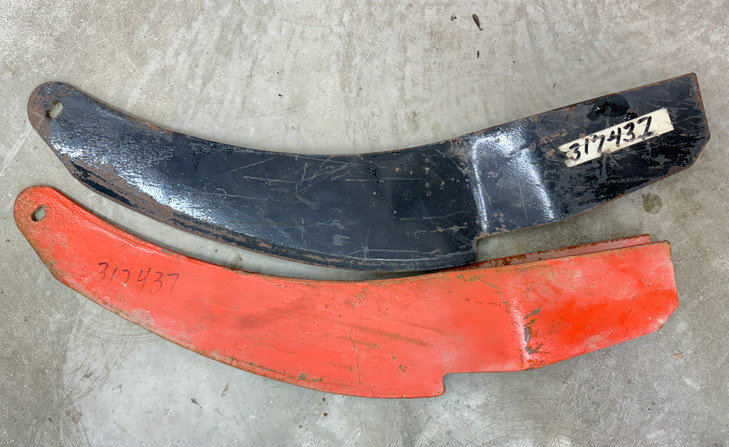

70317437 AGCO Allis-Chalmers RUNNER Sold Individually. New OEM old stock Allis parts.

YOKE, Special Bolt. Planter part. Threads are 1/2"-13, the threaded portion is 5/8" long. Overall length 3.42" x 1.20" wide. New OEM Allis part 70597554.

CAPSCREW, Bolt Left Hand Threads 5/8"-11 x 1-1/4L. Right hand part number is 901-1010.

Idler Sprocket, 15 teeth, .50"ID x .32" wide x 2.62"OD. There is a small indentation in one spot on the seal. Does not affect the performance of the part, cosmetic.
