AGCO Gleaner

Double GUARD We try to take pictures as the parts come to us so you can see exactly what it is... Looks worse than what it is, still a good useful part.

BEARING Cage Roller Bearing. 71114824 Replaces 70512164.

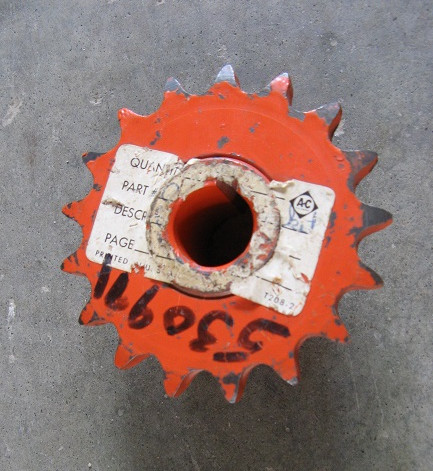

SPROCKET 17T #50 chain. .85"ID x 3.68"OD x 1.31" wide. 1/4" keyway. 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER

70534707 AGCO Gleaner Single V PULLEY .86"ID x 5.25"OD x 1.31"W Hub x .59"W top of V, Cast metal.

Sprocket, 7T, 1.83"ID x 4.37"OD. 330 / 335 / 430 / 435 / 630 (MODELS A / C / E / EIII / F / G) CORN HEADER; 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER; LOW PROFILE...

SPROCKET Coupling, 12T #60 Chain Special Narrow. .87"ID w/ keyway .25" wide. 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER

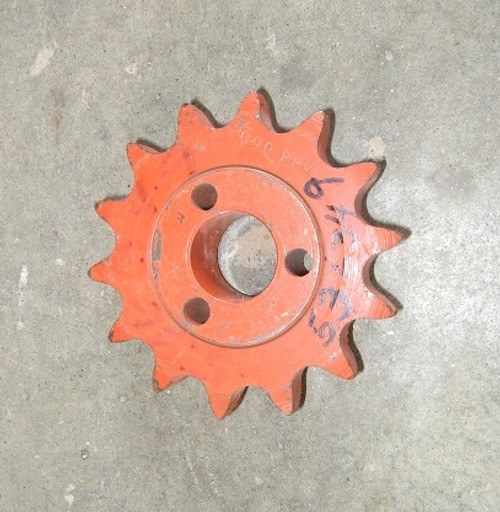

SPROCKET 14T #60 chain. 1.00"ID x 3.75"OD x 1.00" wide. 330 / 335 / 430 / 435 / 630 (MODELS A / C / E / EIII / F / G) CORN HEADER; ADAPTERS AND DRIVE CONVERSIONS F/CORN HEADER; LOW PROFILE...

Sprocket, 21T #50, 1-1/8" 6 Spline x 4.50"OD x 1-7/8" wide at hub. 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER

SPROCKET, 18T #50 chain. 1.25"ID x 3.87"OD. 1.50" wide at hub. 1/4" keyway. 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER; 330 / 335 / 430 / 435 / 630 (MODELS A / C / E /...

SPROCKET, Double, 21T #50 / 25T #60 Chain 25 Teeth, Small side #50 Chain 21 Teeth. Inside Hub is 6 Spline 1-1/8" X 1.75" Wide, which is the same for the sprocket sides. 240 / 340 / 440 SERIES...

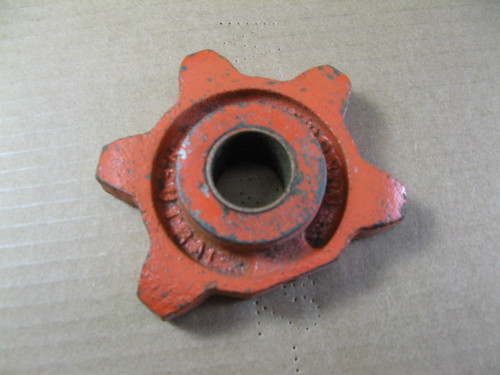

Sprocket, 5T, .87"ID x 3.75"OD x 1.37" wide at hub. Casting number 539833.

SPROCKET, 20T #60 Chain. 21 spline ID. 1.33"ID x 5.12"OD x 1.50" wide at hub. Tapped for One Set Screw. LOW PROFILE CORN HEADER - 1971 MODELS & PRIOR;

SPROCKET 21T #50 / 25T #60 Chain. 21T is 4.50"OD. 25T is 6.37" OD. 1.34"ID x 21 splines. 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER

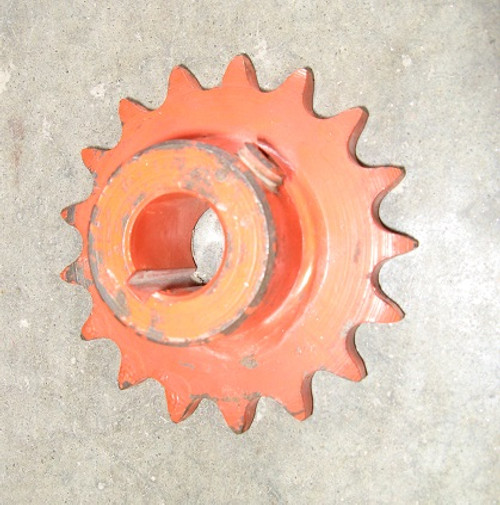

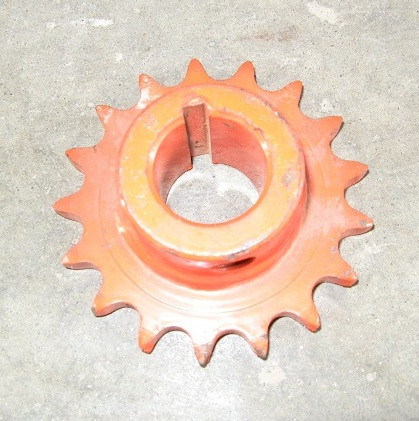

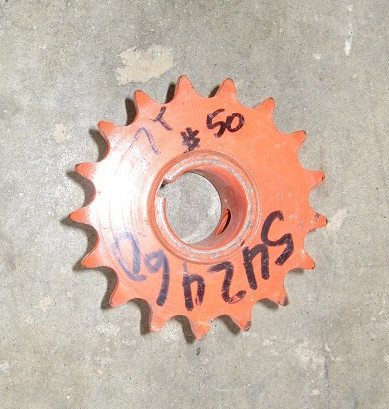

SPROCKET, 17T #50 chain. 1.12"ID x 3.68"OD x 1.43" wide. Tapped for one set screw. 1/4" keyway. LOW PROFILE CORN HEADER - 1971 MODELS & PRIOR; 330 / 335 / 430 / 435 / 630 (MODELS A / C / E /...

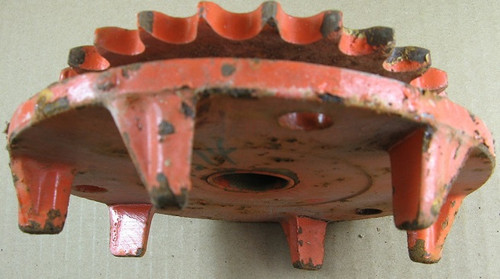

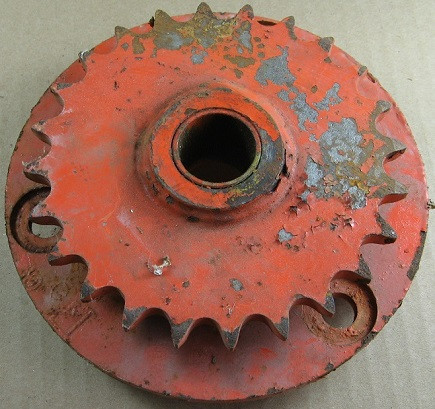

Sprocket Clutch Sprocket 24T #50 chain, 1.00"ID x 5.12"OD Hub is 6.00"OD Overall thickness 2.25". No casting number. 70544514: PLATE ASY., beater drive clutch (Incl. BUSHING) BEATER DRIVE SLIP...

SPROCKET Double 14T & 14T #60 chain both sprockets. 1.12"ID x 3.75"OD, 6 spline ID. 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER; 330 / 335 / 430 / 435 / 630 (MODELS...

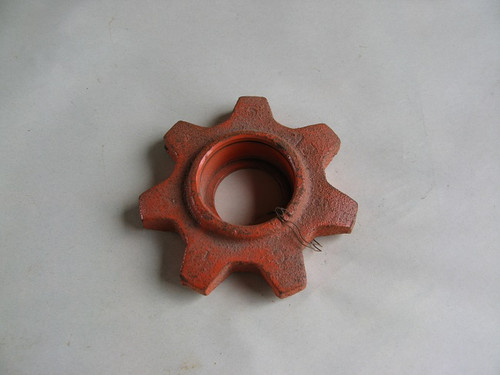

SPROCKET HUB 1 SIDE, 7T, 1.85"ID 4.50"OD X 1.00"Wide. Machined internal for bearing. LOW PROFILE QUICK SWITCH CORN HEADER - 1972 & 1973 MODELS; LOW PROFILE QUICK SWITCH CORN HEADER - 1974...

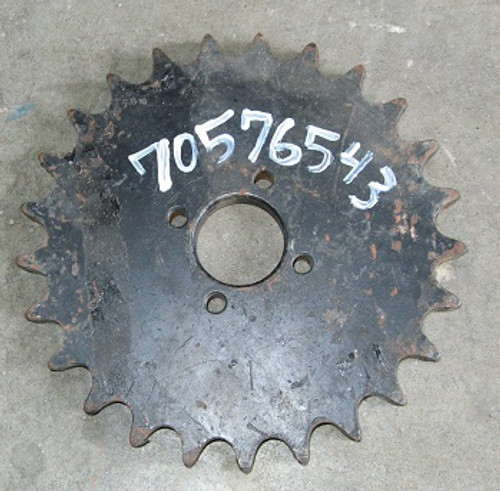

SPROCKET, 25T #60 Chain. 1.25"ID x 6.37" OD. 4 mount holes. NO Hub. ADJUSTABLE ROW CORN HEADER - 1977 MODELS; ADJUSTABLE ROW CORN HEADER - 1978 MODELS; ADJUSTABLE ROW CORN HEADER - 1978...

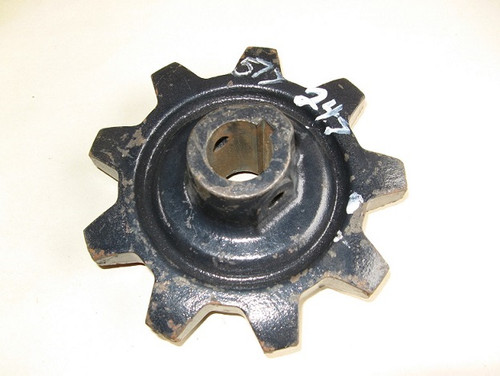

SPROCKET Single 9T .94"ID x 5.50"OD x 2.12" wide. New OEM AGCO part number 70577247. LOW PROFILE QUICK SWITCH CORN HEADER - 1974 MODELS; ADJUSTABLE ROW CORN HEADER - 1977 MODELS; ADJUSTABLE...

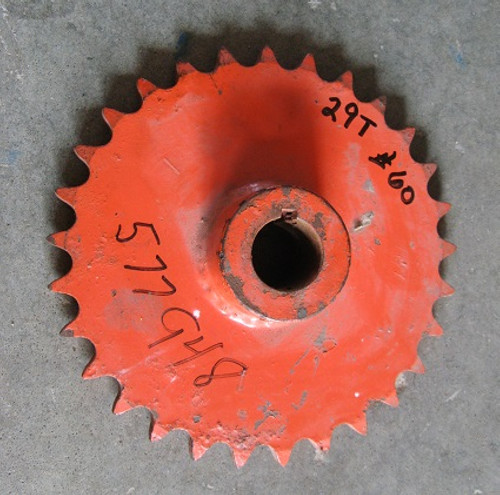

SPROCKET, 29T #60 Chain. 1.10" ID x 7.43"OD. Has keyway, cross drilled and tapped. LOW PROFILE CORN HEADER - 1971 MODELS & PRIOR; LOW PROFILE QUICK SWITCH CORN HEADER - 1974 MODELS; LOW...
