SPROCKETS SECTION

SPROCKET, 48T #50, Keyway 1/4" wide includes set screw. 1.00"ID x 8-7/8"OD x 1.25" wide hub/collar. Sprocket, Driven, Pick-up. NH Models 77, 87, S77, 98.

SPROCKET, Single, #40 chain, 18 Teeth, 1.75" ID x 3.12" OD. 029 AUGER & PICKUP DRIVEN Models 87, S77, 98

SPROCKET, 24T #50. Center hole splined. 5-1/16"OD. 717, 718, 770, S717

SPROCKET with Shaft, 19T #50 chain. 1.12"OD x 4.12"OD. Shaft 8.12" long actual shaft-inside sprocket to end x with a woodruff key opening .25" wide.

SPROCKET 19T, #445 Pintle Chain 1.63" Pitch. 12006 Casting Number. Pick-Up Chain Idler Sprocket Assembly. APPLICATIONS: S77, 87, 98 NH New Holland Balers. Plastic plugs are still in the hole. Sold Individually.

SPROCKET, 35T #60 chain, 2-1/16"ID x 8.75"OD x .45" thick, has 4 slotted holes 9/16" x 1-1/8". 80134195 supersedes to 134195. This is new OEM New Holland part number 134195. NH 461

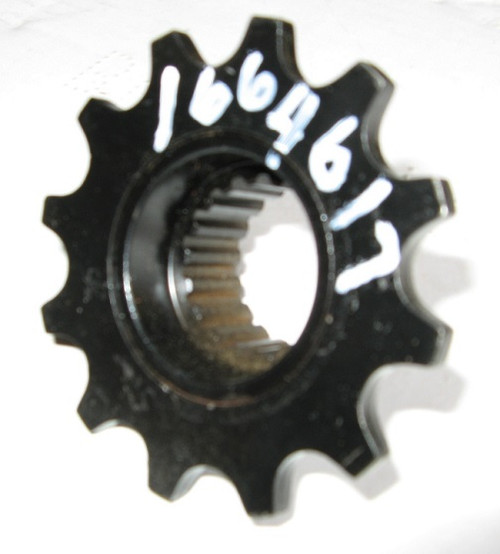

Sprocket, Coupling Sprocket. 12T #60 chain.

 SPROCKET, Single, #50 Chain, 36 Teeth; Smooth Bore 3.00"ID x 7.50"OD. 962 New Holland Head Auger Drive. NH Corn Heads 962N3, 962N4, 962N6, 962W4, 962W5.

SPROCKET, 23T #50 Chain, 1.00"ID x 4.87"OD x 1.25" Wide Hub with grease zerk. Bronze Bushing Insert. TR Series Combines.

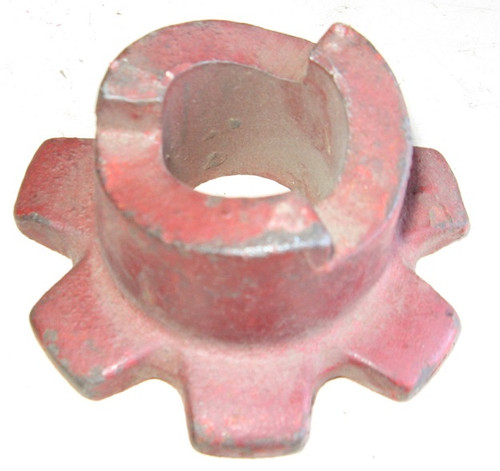

SPROCKET, 7T, Cast iron slip clutch jaw style 3 jaw clutch. New old stock.

SPROCKET w/ Slip Clutch Hub. 11T, 1.12"ID x 4.62"OD x 1.50" wide at hub. Casting number 28203.

SPROCKET Double 13T and 21T #50 with grease zerk. 2.62" wide at hub and has needle bearing insert. NH Models 66, S66, 166

SPROCKET and Hub, Single, #50 chain, 19 teeth; 1.36"ID x .37" wide keyway x 5.00" wide overall. Hub has 2 setscrews and lock nuts. Application: NH Models 818 and SP818, Engine Drive at Gearbox, 020 ENGINE SHEAVES & IDLER GROUP - 818,SP818. New OEM...

SPROCKET, 20T #60 Chain Clutch Hub with grease zerk. 1.25"ID X 5.25"OD. X 1.50" wide at bushing. 2.00" overall width. NH Models 841, 842

SPROCKET, Single, CA550 Chain, 27 Teeth; TINE BAR, DRIVE & CAM TRACKS, Related part Needle Bearing 37326 - 2 used in this sprocket. New OEM New Holland part number 40978. 78, 178, S78, 202T

Sprocket w/hub. 15T #40. w/ two set screw. .75"ID X 2.62"OD X 1.00" wide hub.

SPROCKET, Single, 7 Teeth, 2050 Chain .87"ID x 3.25"OD x 1.25" wide at hub. Has Bushing Insert.

SPROCKET 11T, #2050 Roller Chain. Cast Metal. 1.00"ID x 1/4" wide keyway x 1-1/4" wide at hub. 54478 replaced by 681103. 99 - NH SQUARE BALER(02/61 - 05/63) 681103 018 - PICK-UP GROUP; 290 - NH SQUARE BALER(01/64 - 02/76) 681103 023 - SUPER-SWEEP PICKUP;...

Sprocket 20T #41, .75"ID x 3.38"OD x 1.14" wide at hub. Has 2 set screws.

Sprocket weld square tube, 20T #41 chain, 3.38"OD x .91" inside square tubing x 1.12" outside square tube x 2.25" long.
