SPROCKETS SECTION

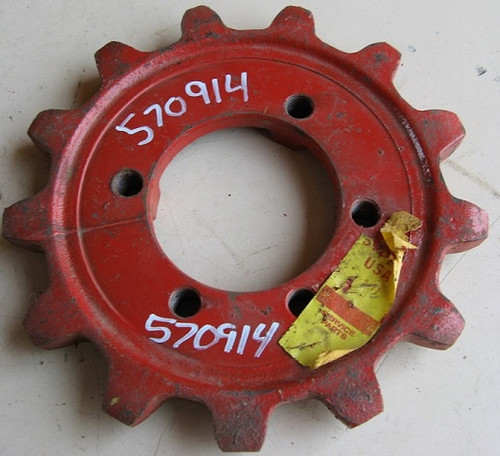

SPROCKET, no hub, 13T #CA550 and CA557 Chain Pitch 1.63", with 4 tapped holes. 3-7/8"ID x 7-1/2" OD. 570914 replaced by 708521. This is new OEM New Holland part number 570914. NH Balers 845, 846, 847, 851, 852.

Sprocket 13T, 21 Spline. 59381031 supersedes to KIT Number 60650. This is 59381031 Sprocket.

SPROCKET, Single, #35 Chain, 60 Teeth

SPROCKET, Single, #35 Chain, 30 Teeth.

SPROCKET, Double, #35 Chain, 14 Teeth Both Sprockets.

SPROCKET, Single, #40 Chain, 12 Teeth.

SPROCKET Driven, Special Cog Timing Belt Sprocket and Hub with Splined Center Hole. This is new OEM New Holland NH 621073. NH 970 Rigid Grain Head; 971 Rigid Grain Head; 972 Flex Grain Head; 973 Flex Grain Head. 621073, 80621073, 80797724 supersedes to...

SPINDLE Sprocket and Splined Shaft, 24T. Applications: NH TR70, TR75 & TR85. Shipping Size 6.50"x5.50". New OEM New Holland part number 622375.

IDLER Sprocket, 15T #60 Chain. .75"ID x 4.00"OD x .45" wide hub/inner race. Ball Bearing inner race made to accept lock collar. 905 - SPEEDROWER WINDROWER(07/64 - 07/67) 66481 030 - CRUSHER AND CRIMPER ASSEMBLY, ATTACHMENTS, 905

Sprocket, 10T New OEM.

SPROCKET, 30T #50 chain, 1.25"ID x 6.25"OD x 1.31" wide with keyway .31" wide. Replaces 705800 a 26T Sprocket. This is 684862. TR97, TR98, TR99, TR89, TR95, TR96

SPROCKET / HUB 2 SIDE. 12T #32. .65"ID x .65"ID x 1.50" wide x 4.75" OD. UNIT PLANTERS- FERTILIZER HOPPER, 600 SERIES - 70309182: SPROCKET, driven (12T). Casting Number 309182. Related 70311614 SPROCKET, driven (20T).

Sprocket 18T, .64" x .64"ID x 7.12"OD, 1.50" wide. Used on Planter Hopper Fertilizer 600 Series pull type. Casting number 311613. 600 Series UNIT PLANTERS - HOPPER DRIVE, SHAFTS, SPROCKETS & MOUNTS 70311613: SPROCKET (18T)

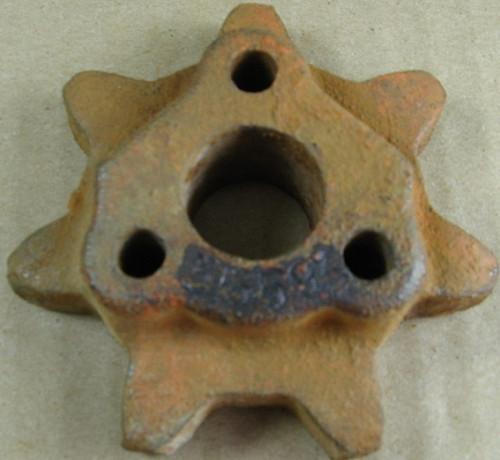

Sprocket 7T, .75"ID center hole, 3 outer holes Overall width .90" x 3.00"OD. Related to 70316595. One database shows 70316593 superseding to 70323942 , which I inventoried earlier. The hub configuration is somewhat different, so please look at the...

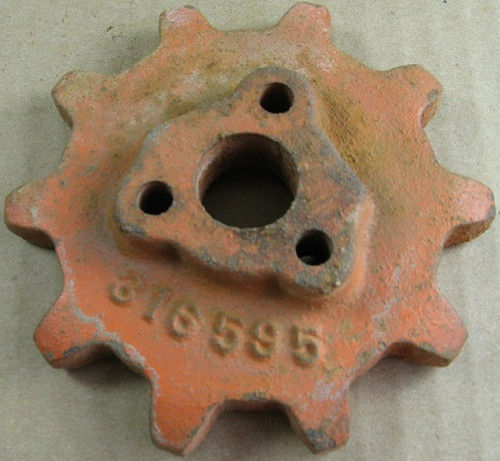

Sprocket 10T, .75"ID x 4.12"OD. One database shows 70316595 superseding to 70323940 , which I inventoried earlier. The hub configuration is somewhat different, so please look at the pictures carefully. Overall width .90" wide. Related to 70316593 ...

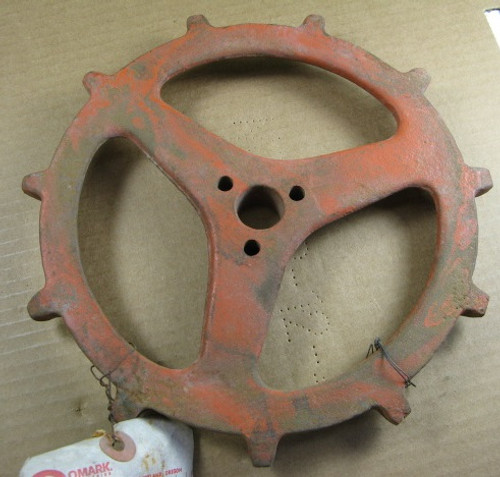

Sprocket 11T Double Spaced. .75"ID x 8.50"OD. Casting number 316842.

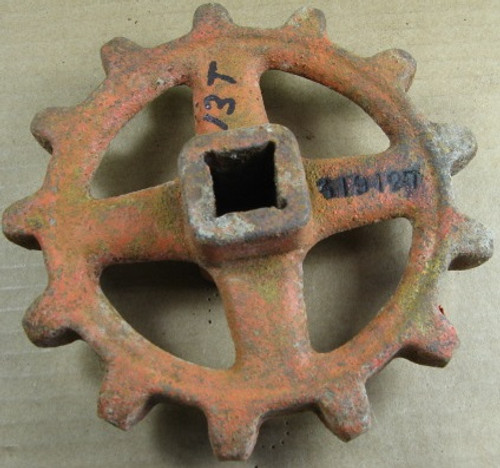

SPROCKET / HUB 2 SIDE. Sprocket cast metal, square hole, 13T. .65" X .65"ID, 5.25"OD. Used on Planter Hopper Fertilizer 600 Series pull type. Casting number 319127 . 600 Series UNIT PLANTERS - HOPPER DRIVE, SHAFTS, SPROCKETS & MOUNTS 70319127:...

Sprocket 14T single space. Center hole has Triangle shape opening and .75" round. Hub 1.00" wide x 5.55"OD. Casting number 323936 . New old stock. Related to 70323940, 70323942, 70323944, 70341986. Sold individually.

Sprocket 8T Double Spaced. 75"ID, Overall width is .92" and sprocket itself is .50" wide x 6.37"OD. Casting number 318296.

Sprocket 10T Single Space. Center hole has Triangle shape opening and .75" round. Hub 1.00" wide x 4.10"OD. Sold individually. Casting number 323940 . New old stock. Related to 70341986, 70323942, 70323944, 70323936 .
