SPROCKETS SECTION

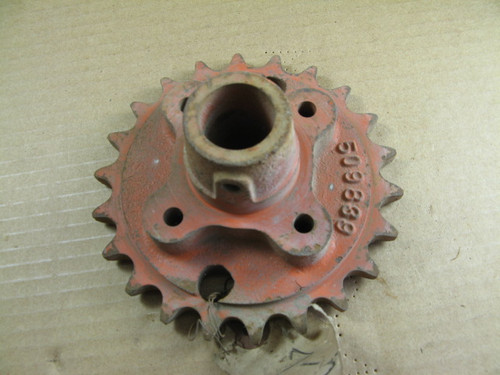

Sprocket w/ hub, 22T #50, Center hole is .87"ID x 4.70"OD x 2.25" overall Width at Hub. Casting number 509839. This part has old hand number of 509939. I suspect that the number was written incorrectly, but strange things happen in the part numbering...

SPROCKET 8T .62"ID x 4.80"OD slip clutch jaw-style w/ sprocket, casting number 510230. 66 ALL CROP HARVESTER ("B" SERIES) drive reel.

SPROCKET CLUTCH HUB 11T, 1.37"ID x 6.25"OD x 1.87" wide at hub. Casting number 510245.

Sprocket 12T #50, 1.00"ID x 2.70"OD x 1.88" Wide, with cage roller bearing. Roller bearing not in best condition.

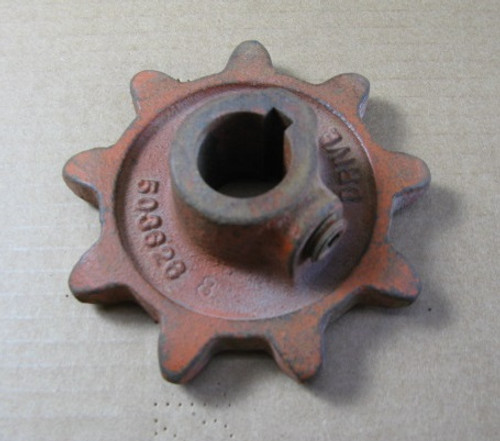

Sprocket 9T .86"ID x 4.00"OD x 1.40" Wide at hub, Has set screw. Casting number is 503628 "drive".

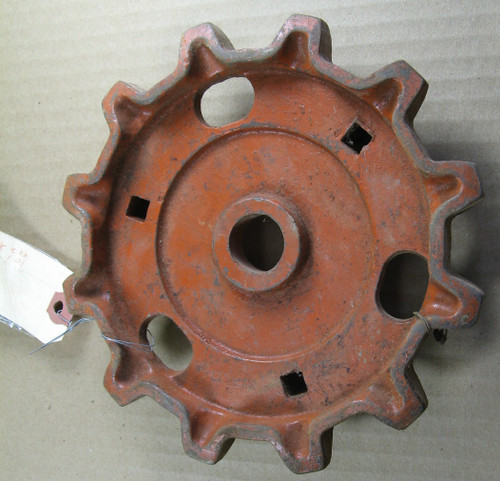

Sprocket 12T open center 2.60"ID x .56" wide. Casting number 517651. 66 ALL CROP HARVESTER ("B" SERIES),

Sprocket / HUB 1 SIDE. 8T .86"ID x 4.75"OD X .86" ID with keyway. 1.50" Wide with hub. 66 ALL CROP HARVESTER ("B" SERIES) 70517966: SPROCKET, drive (8T 7/8" Bore) (Incl. SETSCREW). Casting number is 500706.

Sprocket 35T #50 Chain, 1.00"ID x 7.30"OD

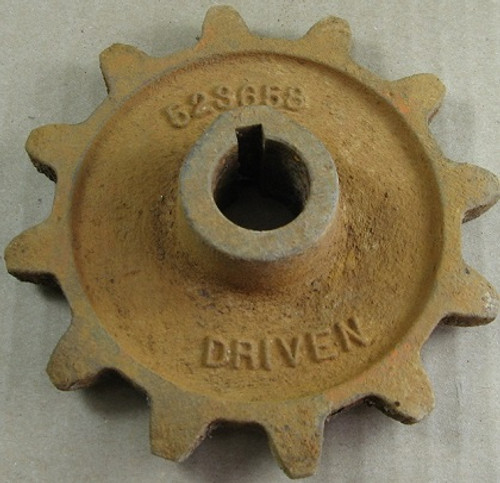

Sprocket 12T, .87"ID x 1.43" wide at hub w/ .25" wide keyway. Hub protrudes approximately .125" one side and .75" on other. Casting number 523658. 66 ALL CROP HARVESTER ("B" SERIES) countershaft, driven.

SPROCKET, 11T #50 1.12"ID. 66 / 72 / 90 ALL CROP HARVESTER (TWO ROW CORN HEAD)

SPROCKET, 14T #50 Threaded inside.

Sprocket 8T 4.80"OD and pulley 1.25"ID x 7.90"OD x 3.25" total width. Casting number 525321 .

SPROCKET w/ slip clutch, 7T 1.50" overall width at hub, gather chain drive clutch, has 6 cogs on hub. 66 / 72 / 90 ALL CROP HARVESTER (TWO ROW CORN HEAD)

SPROCKET 17T #50 chain. .85"ID x 3.68"OD x 1.31" wide. 1/4" keyway. 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER

Sprocket w/ hub 13T, .75"ID x 5.50"OD x 1.95" total width. Hub has 6 tapped holes. Hub 4.25"OD x 2.50"ID Collar. Casting number 532644 .

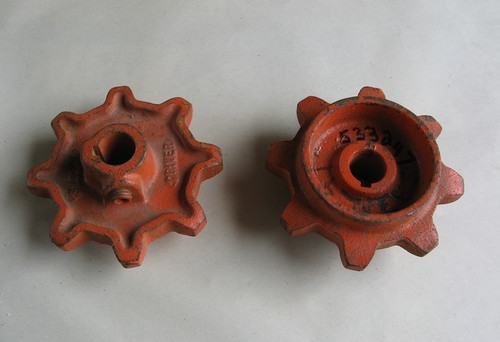

SPROCKET Single 8T .85"ID x 4.87"OD x 2.00" wide at hub. Tapped for one set screw, set screw included. 1/4" keyway. Casting number 533247. Sold individually.

Sprocket, 7T, 1.83"ID x 4.37"OD. 330 / 335 / 430 / 435 / 630 (MODELS A / C / E / EIII / F / G) CORN HEADER; 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER; LOW PROFILE CORN HEADER - 1971 MODELS & PRIOR.

SPROCKET Coupling, 12T #60 Chain Special Narrow. .87"ID w/ keyway .25" wide. 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER

SPROCKET 14T #60 chain. 1.00"ID x 3.75"OD x 1.00" wide. 330 / 335 / 430 / 435 / 630 (MODELS A / C / E / EIII / F / G) CORN HEADER; ADAPTERS AND DRIVE CONVERSIONS F/CORN HEADER; LOW PROFILE CORN HEADER - 1971 MODELS & PRIOR;

Sprocket, 21T #50, 1-1/8" 6 Spline x 4.50"OD x 1-7/8" wide at hub. 240 / 340 / 440 SERIES (MODELS A / C / E / EIII / F / G) CORN HEADER
