SPROCKETS SECTION

SPROCKET, Single, # 60 Chain, 20 Teeth; 1000 PTO 851 NH Baler. Used.

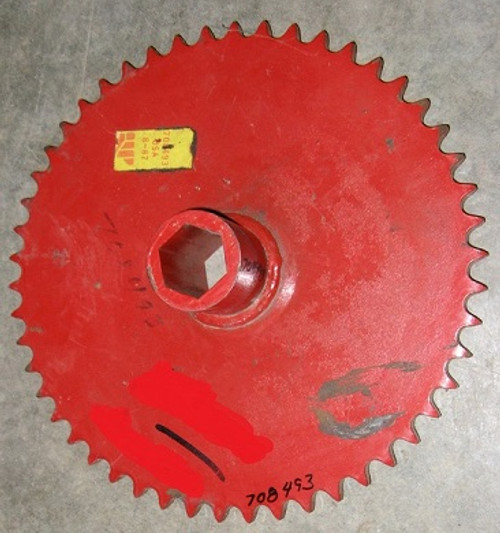

SPROCKET, 50T #60 Chain. 1.50"ID Hex. 2-7/8 wide at hub. APPLICATIONS NH Models 851, 852. New OEM New Holland part number 708493. 851 1000 PTO - NH ROUND BALER(08/78 - 06/82) 708493 009 - DRIVE, LH, BSN 590920 708493 010 - DRIVE, LH, ASN 590921 708493...

SPROCKET, 14T #2050. 1.00"ID x 6.00" OD x 1.75" wide at hub. Cross drilled .25"ID and tapped for grease zerk. E COMBINE / E ENGINE.

SPROCKET, 26T C / C II COMBINE harvester drive (26T) (750 RPM); E COMBINE / E ENGINE harv. drive (26 tooth) (750 RPM) (Model A S/N 30001 thru 32000) (Model C S/N 5001 thru 7000).

SPROCKET

SPROCKET, 30T #60. 2.25"ID x 7.62"OD. 4 mounting holes. A / R COMBINE AND ENGINE - A / R / B (EFF S/N 14053-30000); B RICE SPECIAL (EFF S/N 14053) COMBINE; C / C II COMBINE; E COMBINE / E ENGINE; EIII (EFF S/N 25001) / K SERIES (PRIOR...

SPROCKET, 26T #50 chain. 1.25"ID x 5.50"OD x 2.00" wide at hub. 1/4 keyway. C / C II COMBINE SPROCKET ASY. (26T) There might be a serial number break to check out before ordering.

SPROCKET, 13T #2050. 1.25"ID x 5.25"OD x 1.50" wide at hub. Tapped for set screw. Cross drilled for pin/bolt .25"ID.  New old stock OEM 71130647. E COMBINE / E ENGINE crank, L.H. (13 tooth)

Sprocket, 18T #50. 1.25"ID x 3.92"OD x 1.68" wide hub. 1/4" wide keyway. New OEM AGCO part number 71131901. EIII (EFF S/N 25001) / K SERIES (PRIOR S/N 24200) COMBINE; F COMBINE (PRIOR S/N 12201); F COMBINE (S/N 12201-32201); F3 COMBINE (EFF...

Sprocket, 30T #50, .87"ID x 6.30"OD x 1.35" wide hub. Tapped for grease zerk. C / C II COMBINE 71133590: SPROCKET, grain conveyor (30T) (Eff. S/N 5001) (Std.); EIII (EFF S/N 25001) / K SERIES (PRIOR S/N 24200) COMBINE 71133590: SPROCKET...

SPROCKET, 18T #50, Plate Sprocket, No hub, mounts with 4 bolts , C / C II COMBINE.

SPROCKET Double, 12T #50 Chain. 12T is 2.75"OD and 30T is 6.37 OD. 1.17"ID and 5.00" wide at hub.

SPROCKET, 23T #50 chain. 1.25"ID x 4.87"OD x 1.56" wide at hub. Tapped for 1 set screw. 1/4" keyway. C / C II COMBINE; G SERIES COMBINE (PRIOR S/N 7401).

SPROCKET, 28T #50. 1.00"ID x 6.00"OD with 1/4" keyway. Tapped for set screw. GRAIN HEADER - K2 PRIOR 38501; F2 PRIOR 65001; L2/M2 48000; MH2; N5 / N6 / N7 (PRIOR S/N 8101) GRAIN HEADER; C / C II COMBINE 71135857: SPROCKET ASY., fan drive (28T)...

SPROCKET, 31T #50 Chain. 1.00"ID X 6.50"OD x 1.56" wide at hub. Has keyway cut and tapped for one set screw.

SPROCKET / SINGLE, 24T, #50 Chain .84"ID x 5.25" OD. C / C II COMBINE 71136030: SPROCKET, grain conveyor (24T) (Eff. S/N 5001) (Special); G SERIES COMBINE (PRIOR S/N 17001) 71144412: SPROCKET,(5/8P-32T)(PRIOR S/N 7401) (71136030 24T SPECIAL).

Sprocket NO Hub. 44T #60 Chain, 2.24"ID x 10.90"OD x .44" thick. Has 4 mounting smooth holes .38"ID and on 3.25" center Diagonally. C / C II COMBINE 71136294: SPROCKET ASY. (For pinned springs) (Incl. Item 34 BUSHING) (Eff. 7001).

Sprocket, 28T #50 or 14T #2050 1.25"ID x 5.90"OD x 1.50" wide hub with 2 tapped holes 1/2""-13 thread. New OEM AGCO Sprocket part number 71137714. EIII (EFF S/N 25001) / K SERIES (PRIOR S/N 24200) COMBINE; F COMBINE (PRIOR S/N 12201); F...

SPROCKET, 25T #50 chain. 1.25"ID x 5.25" OD x 1.75" wide at hub. 1/4" keyway. 71138010 supersedes to 71132389. New old stock EOM Gleaner part. C / C II COMBINE; E COMBINE / E ENGINE; EIII (EFF S/N 25001) / K SERIES (PRIOR S/N 24200) COMBINE; F...

SPROCKET, 27T #50, 1.00"ID x 5.75"OD. 1/4" wide keyway. Center Hole Tappers from 1.00" one side of hub to 1.21". EIII (EFF S/N 25001) / K SERIES (PRIOR S/N 24200) COMBINE 71138282: SPROCKET (EIII).
