SPROCKETS SECTION

SPROCKET, 32T #60 Chain. 1.25" ID X 8.12" OD x .45" thick. A larger size of this is 71167144 SPROCKET, 38T F COMBINE (PRIOR S/N 12201) F COMBINE (S/N 12201-32201); F3 COMBINE (EFF S/N 51001); F3 COMBINE (EFF S/N 51001); G COMBINE (EFF S/N...

SPROCKET, 27T #50. 1.25"ID x 5.75"OD with 1/4" wide keyway. 1.56" wide at hub. Tapped for set screw, not included. EIII (EFF S/N 25001) / K SERIES (PRIOR S/N 24200) COMBINE 71147699: SPROCKET ASY. (Prior S/N K-8201).

SPROCKET, 21T #50. 1.12"ID x 4.50"OD x 1.56" wide at hub. Tapped for 2 set screws. GRAIN HEADER - K2 PRIOR 38501; F2 PRIOR 65001; L2/M2 48000; MH2; EIII (EFF S/N 25001) / K SERIES (PRIOR S/N 24200) COMBINE.

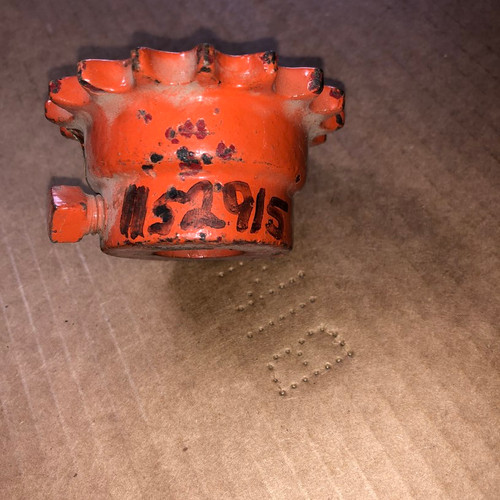

SPROCKET, 17T #40 Chain. .87"ID x 1.48" Wide  .18" Wide keyway with setscrew

SPROCKET, 15T #50. 1.00"ID threaded x 3.37"OD. 1.25" wide at hub. This is new OEM AGCO part 71158534.

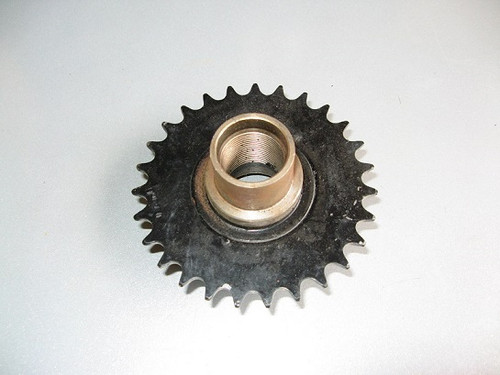

SPROCKET, 27T #40. Inside has staggered sizes and part of it is threaded. 4.50"OD x 3.87" wide Hub. Excellent condition. Threads may appear to be blurred, this is due to cropping photos. Threads are great condition. New OEM AGCO part number 71163058.

Sprocket w/ hub. 22T #50 Chain. 1.00"ID x 4.70"OD x 1.37 wide hub x 1.74"OD hub. Hub side tapped for grease zerk. Sold Individually.

SPROCKET Double 22T and 32T 1.00"ID x 1.62" wide at hub. 22T is 4.75" OD and 32T is 6.75" OD. The BRONZE BUSHING used in this sprocket is Qnt. 2 - 71157144. L SERIES (PRIOR S/N 13000) COMBINE; L2 / L3 (EFF S/N 13001-28000) COMBINE; M...

SPROCKET Double. 26T x #50 Chain and 38T x #50 Chain. 1.25"ID Bronze Bushing x 2.81" wide at hub. 26T is 5.50"OD and 38T is 8.00" overall OD. Has grease zerk. New OEM AGCO / Gleaner part 71184317. L SERIES (PRIOR S/N 13000) COMBINE; M...

SPROCKET Double Sprocket. 22T and 32T both #50. Includes grease zerk and original Allis-Chalmers Installation Sheet. New OEM Gleaner part number 71192019. L2 / L3 (EFF S/N 13001-28000) COMBINE; L3 (EFF S/N 28001) / M3 (EFF S/N 25901) COMBINE; ...

SPROCKET, 32T #60. 1.35" ID X 8.00" OD X 1.25" wide at hub. Uses four mount holes This is a NEW OEM AGCO part. L2 / L3 (EFF S/N 13001-28000) COMBINE; L3 (EFF S/N 28001) / M3 (EFF S/N 25901) COMBINE; M2 / M3 SERIES COMBINE (EFF S/N 15401-25900).

SPROCKET, 54T #50. New Old Stock AGCO Gleaner part. R40 / R50 COMBINE 71360721: SPROCKET ASY., 54T, auger driven.

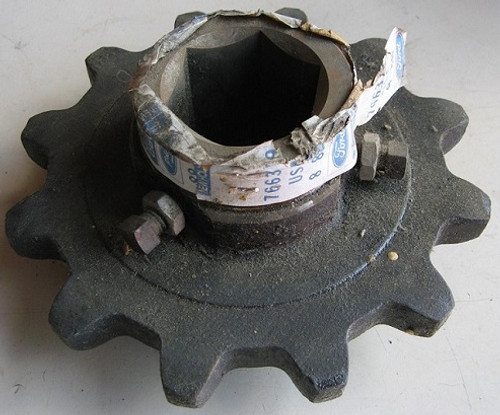

SPROCKET, 12T, Hex ID. 766379 Replaces 618705, 763651. TR and CR series New Holland Combines. This is OEM NH part number 766379.

IDLER Sprocket .50" ID x 4.75"OD, 8 teeth. 87034967, 84416204, 84416205, 84471411, 84471412, 87593314, 87593314E, 47365065,176283C91 and 87607076 all supersede to 84549635. This is part number 87034967.

Idler Sprocket, 15 teeth, .50"ID x .32" wide x 2.62"OD. There is a small indentation in one spot on the seal. Does not affect the performance of the part, cosmetic.

No part number. Sprocket Cast with bushing inserts .87"ID, 7 teeth, Overall width 2.53" x 4.00"OD, Tapped port for grease zerk. On long side of hub which is 1.125" from end to side of sprocket, other short side of hub is .60" from end to side of...

No part number. Sprocket Cast #CA557 Chain, 7 teeth, .87"ID bore no set screw or keyway, cross drilled .30"ID and is .31" from end of hub to center of hole. Overall width 1.62", hub is flush with side of sprocket on one side, the other side the hub...

Sprocket, 8T, 1.00"ID x 3.37"OD, 1.50" wide at hub w/ .31" keyway. Stamped H8070A.

SPROCKET Double 15T and 36T both #40 Chain. Includes 2 Needle Bearings. 6.00"OD x 2.50" wide. JAC500945 supersedes to JAC130483. This is a new OEM Ford Jacobson part number JAC130483, JA130483 JA 130483. 09JC9734 - 36'' TILLER(01/71 - 12/75) JAC130483...
