Sprockets - Single

SPROCKET, Single, #40 Chain, 12 Teeth.

IDLER Sprocket, 15T #60 Chain. .75"ID x 4.00"OD x .45" wide hub/inner race. Ball Bearing inner race made to accept lock collar. 905 - SPEEDROWER WINDROWER(07/64 - 07/67) 66481 030 - CRUSHER AND CRIMPER ASSEMBLY, ATTACHMENTS, 905

Sprocket, 10T New OEM.

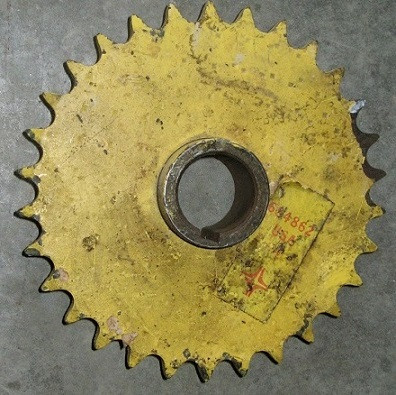

SPROCKET, 30T #50 chain, 1.25"ID x 6.25"OD x 1.31" wide with keyway .31" wide. Replaces 705800 a 26T Sprocket. This is 684862. TR97, TR98, TR99, TR89, TR95, TR96

SPROCKET / HUB 2 SIDE. 12T #32. .65"ID x .65"ID x 1.50" wide x 4.75" OD. UNIT PLANTERS- FERTILIZER HOPPER, 600 SERIES - 70309182: SPROCKET, driven (12T). Casting Number 309182. Related 70311614 SPROCKET, driven (20T).

Sprocket 18T, .64" x .64"ID x 7.12"OD, 1.50" wide. Used on Planter Hopper Fertilizer 600 Series pull type. Casting number 311613. 600 Series UNIT PLANTERS - HOPPER DRIVE, SHAFTS, SPROCKETS & MOUNTS 70311613: SPROCKET (18T)

Sprocket 7T, .75"ID center hole, 3 outer holes Overall width .90" x 3.00"OD. Related to 70316595. One database shows 70316593 superseding to 70323942 , which I inventoried earlier. The hub configuration is somewhat different, so please look at the...

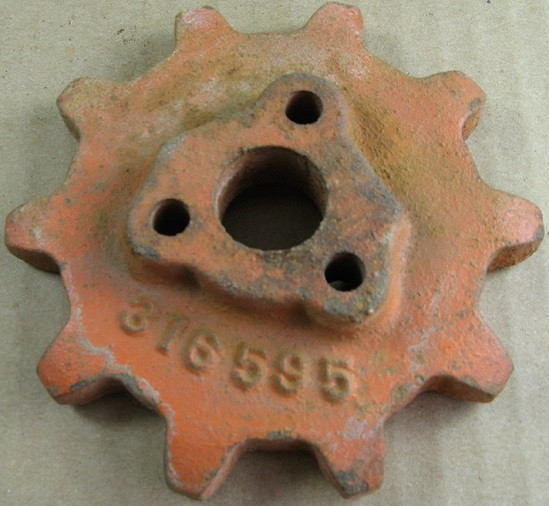

Sprocket 10T, .75"ID x 4.12"OD. One database shows 70316595 superseding to 70323940 , which I inventoried earlier. The hub configuration is somewhat different, so please look at the pictures carefully. Overall width .90" wide. Related to 70316593 ...

SPROCKET / HUB 2 SIDE. Sprocket cast metal, square hole, 13T. .65" X .65"ID, 5.25"OD. Used on Planter Hopper Fertilizer 600 Series pull type. Casting number 319127 . 600 Series UNIT PLANTERS - HOPPER DRIVE, SHAFTS, SPROCKETS & MOUNTS 70319127:...

Sprocket 14T single space. Center hole has Triangle shape opening and .75" round. Hub 1.00" wide x 5.55"OD. Casting number 323936 . New old stock. Related to 70323940, 70323942, 70323944, 70341986. Sold individually.

Sprocket 8T Double Spaced. 75"ID, Overall width is .92" and sprocket itself is .50" wide x 6.37"OD. Casting number 318296.

Sprocket 10T Single Space. Center hole has Triangle shape opening and .75" round. Hub 1.00" wide x 4.10"OD. Sold individually. Casting number 323940 . New old stock. Related to 70341986, 70323942, 70323944, 70323936 .

Sprocket 7T single space. Center hole has Triangle shape opening and .75" round. Hub 1.00" wide x 3.00"OD. Casting number 323942 . New old stock. Related to 70341986, 70323940, 70323944, 70323936. Sold individually.

Sprocket 11/22T Double Spaced. Center hole has Triangle shape opening and .75" round. Hub 1.00" wide x 8.50" OD. Casting number 323944 . New old stock. Related to 70341986, 70323940, 70323942, 70323936 .

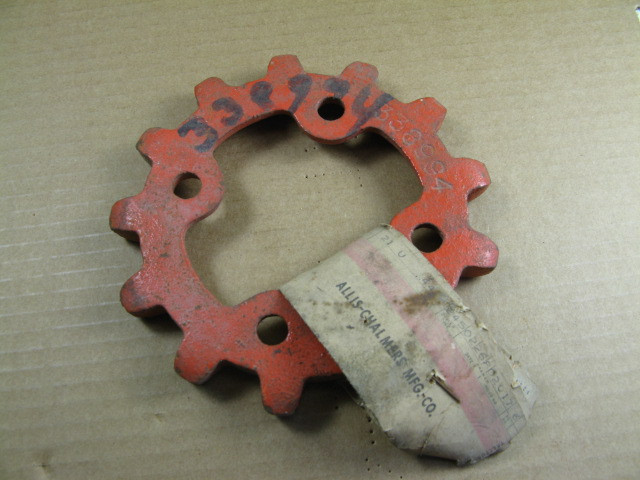

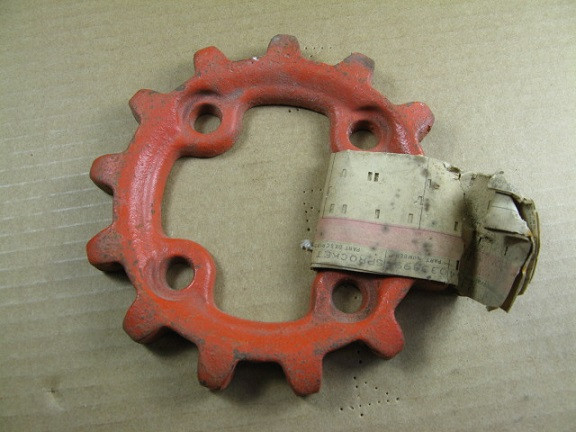

Sprocket 13T 4 mounting holes. .54" wide x 5.12"OD. Casting number 338994.

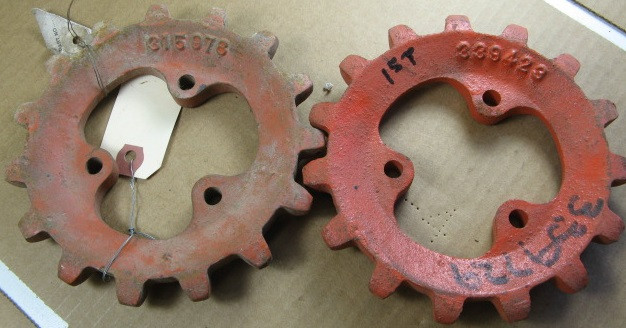

SPROCKET NO HUB 15T SINGLE. Open center, has 3 mounting holes. Overall width is .88" x 5.87"OD. Casting number 339423. 600 SERIES UNIT TYPE PLANTER - UNIT FRAME & DRIVE, 50, 60, 100 SERIES. #32 Chain.

SPROCKET NO HUB 17T SINGLE. Open center, Overall width .88" x 6.62"OD. Casting number 339729. 600 SERIES UNIT TYPE PLANTER - UNIT FRAME & DRIVE, 50, 60, 100 SERIES.

Sprocket 18T 4 mounting holes. 7.12"OD. 341972 is casting number.

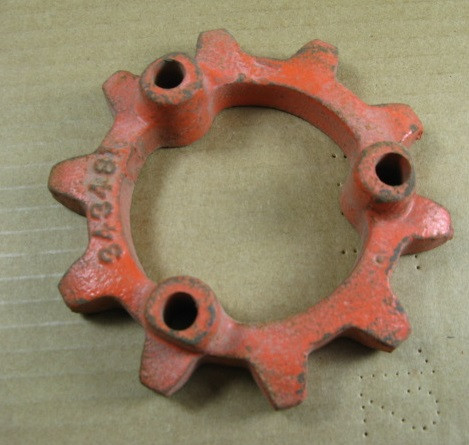

SPROCKET NO HUB 10T SINGLE Open center, 3 mounting holes. Width is .88". Casting number 343841. 600 SERIES UNIT TYPE PLANTER - UNIT FRAME & DRIVE, 50, 60, 100 SERIES.

Sprocket 14T Double Space, square center hole, 10.75" OD. Casting number 344496.
