AGCO Allis-Chalmers

Sprocket 15T #60 x 1.12"ID x 4.00"OD x 1.76" Wide Hub with .25" wide Keyway. Casting number 505597. 70505597 supersedes to 70515824 . This is part number 70505597.

Sprocket 12T .75" ID x 5.12"OD x 3.00" wide including hub.

PULLEY Two Piece. Bolt holes are .27"ID on 3.37" center. The belt area is 2.00" x 6.87"OD Overall width is 2.62".

POINT, DIVIDER, Cast Metal. 3 holes in bottom, 1 hole top. 6.50" long x 2.80" wide x 3.50" tall. No casting number. Paint is weak and some surface rust. Item pictured is what you will receive. New...

PIN, Latch Pin .19"OD Wire

70508264 AGCO Allis-Chalmers GEAR Sold Individually.

DISC, Plug 1.23"OD x .18 Thick Sold Individually.

GUIDE Wood Board 17.00" x 2-3/16" x .75"w, 4 holes all way through. Sold Individually.

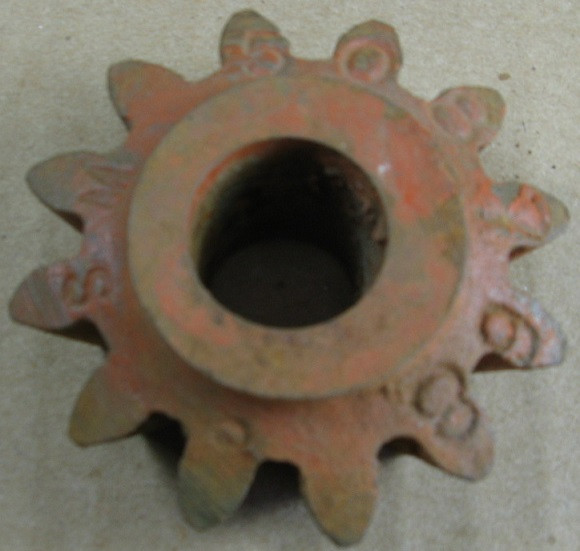

Gear Bevel 12T, ID tapers from .64"ID to .74"ID. Overall Width 1.00". Casting number 508768 is stamped.

Spacer .32"ID x.50"OD x.62"L

WASHER with 2 sides bent up, D shaped hole. Hole .64" x .57"ID Outer 1.12" x 1.45"OD X .05" Thick Wing Up .25" Sold Individually.

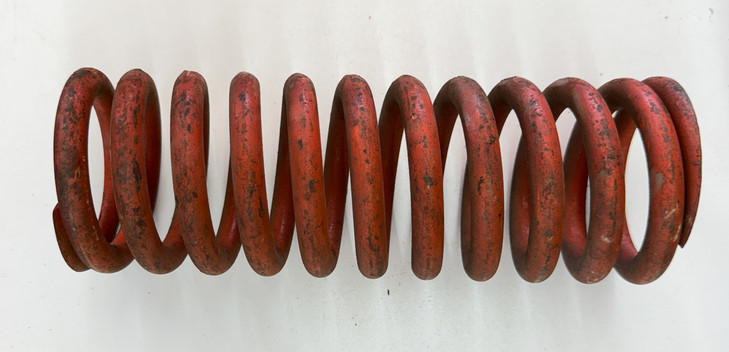

Compression SPRING  2.06"ID x 2.91"OD x 8.25"L x .41"OD Wire

70509534 AGCO Allis-Chalmers Special Spring

Sprocket w/ hub, 22T #50, Center hole is .87"ID x 4.70"OD x 2.25" overall Width at Hub. Casting number 509839. This part has old hand number of 509939. I suspect that the number was written...

Arm cast metal, 4.10" Long x 1.55" wide x 2.00". Good Paint. Large hole .48"ID, middle hole .37", small .32"ID. Casting Number 510201.

510222 Collar, Clamp 1.12"ID x 1.19" Tall x 2.40" Long x 1.75" Wide x .41"ID cross holes Roto Baler Sold Individually.

SPROCKET 8T .62"ID x 4.80"OD slip clutch jaw-style w/ sprocket, casting number 510230. 66 ALL CROP HARVESTER ("B" SERIES) drive reel.

HUB Cast metal, part number cast. Center hole 1.25"ID with keyway and cross drilled. Outer holes .75"ID on 4.37" Centers.

SPROCKET CLUTCH HUB 11T, 1.37"ID x 6.25"OD x 1.87" wide at hub. Casting number 510245.

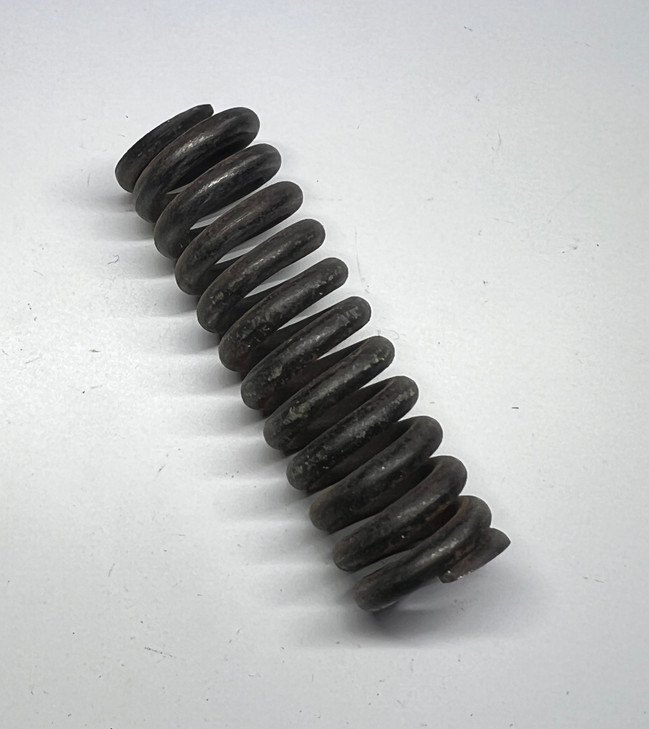

SPRING, Compression SPRING. .37"ID x .62"OD x 2.00"L.
