AGCO Allis-Chalmers

SPROCKET Single 8T .85"ID x 4.87"OD x 2.00" wide at hub. Tapped for one set screw, set screw included. 1/4" keyway. Casting number 533247. Sold individually.

Shaft, New OEM AGCO Gleaner Combine part number 70533269. 55" x 1.38". Splined & threaded on one end only.

70534006 AGCO Allis-Chalmers Cast ROLLER .68"ID x 1.50"OD .48" Wide top of V .75"Wide Sold Individually.

BOLT, Shoulder BOLT. Pin. Ported in Hex Head for Lubrication. Shoulder .87"OD x 1.31"L; Stud 5/8"NC x 1.36"L

CRANK, Connector. Large hole 1.00"ID has bushing insert in it and grease zerk, Small hole .75"ID and split wall bushing, cross drilled hole. 1.54" at widest

PIN, Stud,  1/2-13" Threads each end SHOULDER .75"OD x 5.00" long  7.00" overall length

Threaded Stud, 1/2"-13 NC x 1.00"  PIN .87"OD x 2.53" Long; 3.55" long overall length. Sold Individually.

PULLY Cast Disc pulley with groove, chipped. .27"ID x 2.00"OD x .50" Thick. New OEM Allis Chalmer Part Number 70535582.

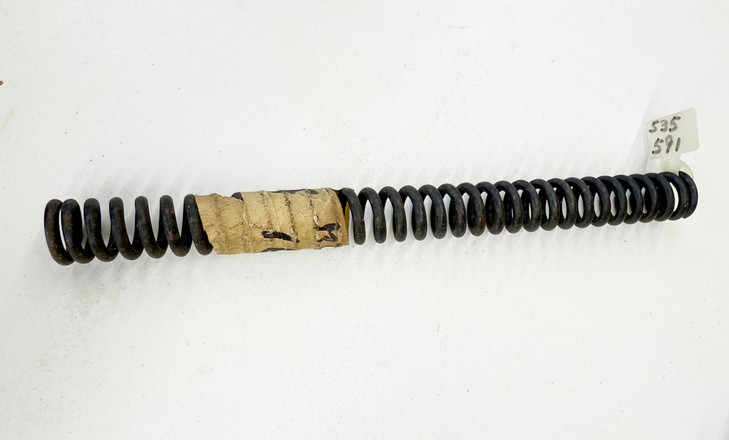

SPRING, Compression Spring, .45"ID x .71"OD x 8.12" Long x .13" Wire Diameter

SHIM 5.50" L x 1.00" W x .03" thick, Holes .40"ID on 4.50" centers.

PLATE Flat Steel triangle with 3 holes .27"ID. 4.37" x 4.00.

70537291 AGCO SNAP FASTENER

Sprocket, 6T, 1.35"ID x 5.25"OD x 2.50" wide at hub. Casting # 538439

ROLLER, knife arm  I believe this is only used on the AC 444 Square Baler.

BOLT Shoulder Bolt, Low Profile Head. 3/8"-16 x .62" Long  Shoulder .62"OD x 1.78" Long Head .12" Thick x 1.12" Wide.

70541066 AGCO Allis-Chalmers Roller

TONGUE & ROLLER ASY., bill hook 302 / 303 / 444 SMALL RECTANGULAR BALER. 700734488 Replaces 70541487. New old stock OEM Allis part.

70541700 AGCO Allis-Chalmers SPRING

BOLT Link Adjusting Bolt Stud. 13.25" Long x 3/4"-10 Thread LH and RH

70542313, 381711-6, 3817116 AGCO Accumite Fitting
