Husqvarna Dixon

IDLER ARM WLDT W/STUD

1324 Dixon Husqvarna 18-3/8"L Mower BLADE .70"ID Center Hole x 2.50" Wide x 18.37" Long x .18" Thick 1324 Replaced by 539115242 New OEM Dixon part. Sold Individually.

Mower Blade 14.62" long x 2.50" wide x .75"ID hole x .18" thick. CW.

26"L Battery Cable 2108, 2110 Replaced by 539115323.

Sprocket and Wheel HUB 4.62" wide at outside outer races. 1.00"ID 60T Sprocket 2203 , 2204, 539124427 Replaced by 539124426 New OEM Dixon old stock item.

2406 Dixon Husqvarna 30" Lawn Mower BLADE .87"ID x 2.50" Wide x .20" Thick x 30.00" Long CW Rotation. 8278, 2406 Replaced by 539116837  New OEM Dixon part.

Mower Blade 14-3/8" long x 2.50" wide x .69"ID hole x .19" thick. CW. Serrated lift wing. Dixon 6013, 6092

Dixon ZTR Decal Has some creases. In sealed plastic bag. 4219, 2422, 4011 Replaced by 539125018 New old stock Dixon part.

4405 Dixon Plastic Battery COVER 13.00" x 4.75" 4405 Replaced by 539125052

Pulley, Single stamped steel 5/8" ID x 4.00"OD x .50 belt x no keyway, overall depth 1.42" x 1.00" deep hub only; Cross drilled for roll pin 1/4"ID New old stock OEM Dixon part number 5035.

GUIDE WLDT. Small STEP, Trim Side Baffle 50" Mulching Deck. 2825 Replaced by 539115424

CENTER GUIDE WLDT Baffle. Center Baffle 50" Mulching Deck. 9573, Replaced by 539117219

DISCHARGE GUIDE WLDT, Side Discharge Baffle 50" Mulching Deck. 9574 Replaced by 539117220.

GUIDE WLDT. Large STEP, Trim Side Baffle 50" Mulching Deck. 9575 Replaced by 539126586. Sold Individually.

Pull SPRING New OEM Dixon part.

Set of 3 Dixon Mulching BLADE 6896. .69"ID x 2.50" Wide x .19" Thick x 14-5/16" Long 6896, 13942, 74129 Replaced by 539119857. New OEM Dixon part.

Idler BRACKET. Includes 2 Washers, 1 - Nut, 1 - BUSHING 5189, 539115972. Related part IDLER ARM 10184, 539117427. If you need the complete IDLER ARM Kit, please contact us for price and availability...

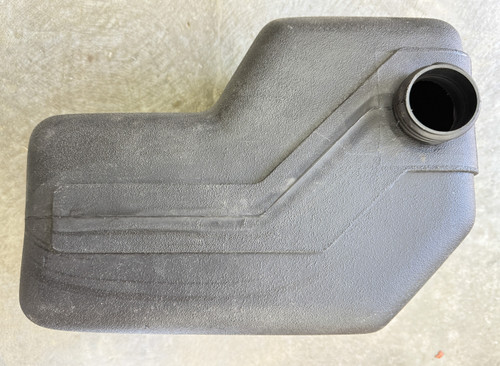

Dixon Fuel Tank, 8877, 539 12 62 87 Replaced by 539126287. New old stock Dixon part.

9265 Dixon Husqvarna 16-3/4"L Mower BLADE .63"ID x 2.50" Wide x .18" Thick x 16.75" Long 9265, 9258 Replaced by 539126431 New OEM Dixon part.

42" Deck Mulching Plate INSERT. 9861 Replaced by 539117271 This is an OEM Dixon part.
